An Introduction to Pantographs

The pantograph is a critical component of electric traction vehicles—such as electric locomotives, electric multiple units (EMUs), and trams—used to draw electrical energy from the overhead contact line (catenary) to power the vehicle. It functions similarly to the charging plug of an electric vehicle but must maintain stable contact while the vehicle is traveling at high speeds.

1. Basic structure of the pantograph

The pantograph is primarily composed of the following parts:

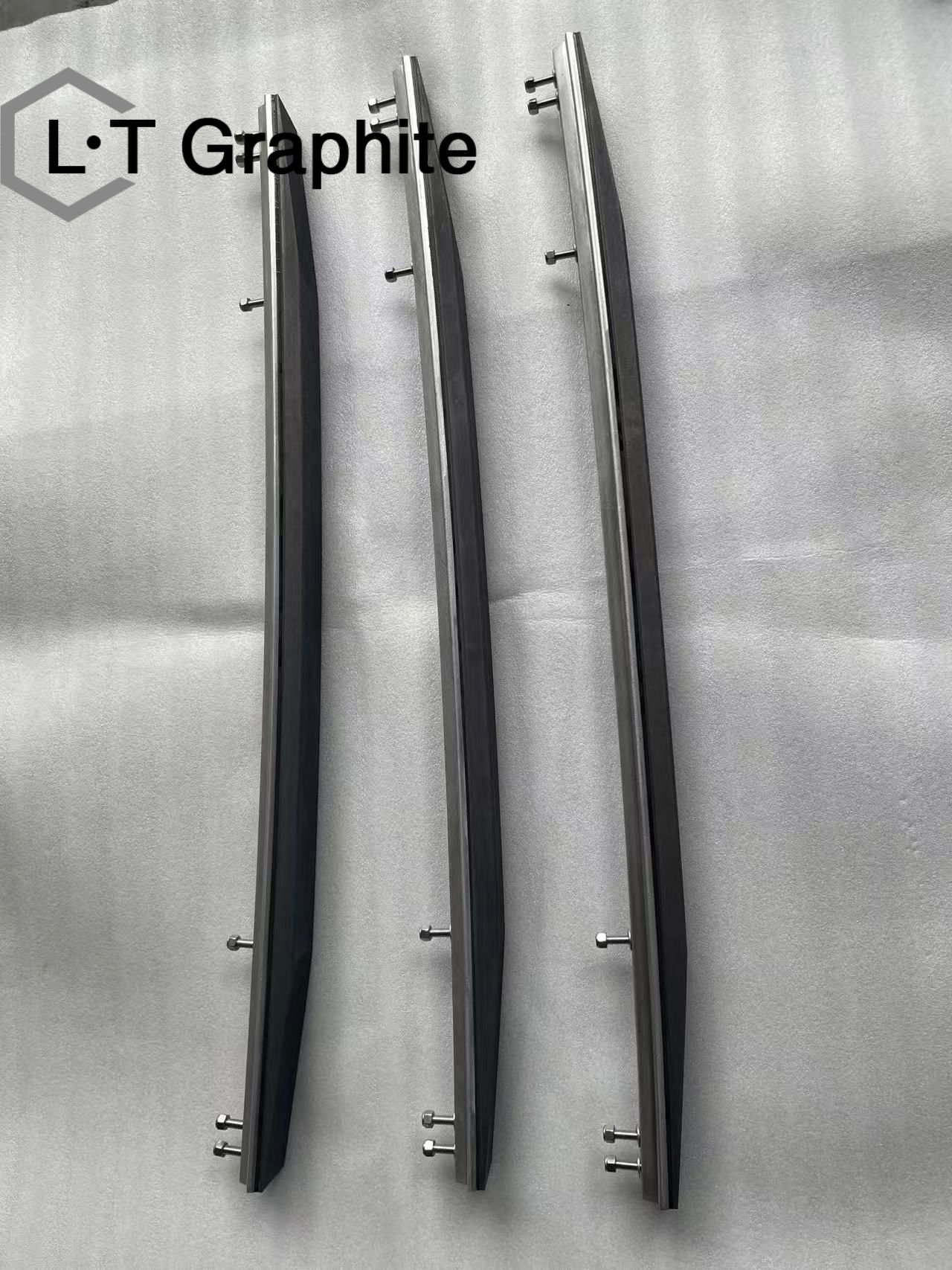

· Contact strip (contact shoe): Makes direct frictional contact with the overhead contact wire; typically made of carbon or copper-based composite materials, offering excellent electrical conductivity and wear resistance.

· Pantograph head (collector head): Supports the contact strip and allows for flexible angle adjustments to accommodate variations in the height of the overhead contact line.

· Upper and lower arms: A metal framework structure used to support and raise/lower the pantograph.

· Raising/lowering mechanism: Typically driven by compressed air (pneumatic) or a spring mechanism to control the vertical movement of the pantograph.

· Insulator: Ensures electrical isolation between the pantograph and the vehicle body to prevent short circuits.

2. Operating Principle of the Pantograph

1. Raising: The driver or control system activates the lifting mechanism (e.g., a pneumatic pump) to raise the pantograph, bringing the contact strip into contact with the overhead contact wire.

2. Current Collection: Current flows from the overhead contact wire through the contact strip and pantograph to the roof-mounted high-voltage line, then to the traction transformer and finally the drive motor.

3. Dynamic Adjustment: The pantograph is equipped with spring or pneumatic cushioning mechanisms to ensure stable contact despite train vibrations or variations in the height of the overhead contact wire.

4. Lowering: The pantograph automatically lowers when the train stops or a malfunction occurs, preventing arcing or mechanical damage.

3. Types of Pantographs

(1) Classification by Drive Mechanism

· Pneumatic pantograph (common): Driven by compressed air; offers rapid response and precise control (commonly used on high-speed trains).

· Spring-driven pantograph: Controlled by mechanical springs; features a simple structure but has limited adjustment capability (often used on trams).

(2) Classification by Structure

· Single-arm pantograph (e.g., DSA series): Lightweight structure suitable for high-speed trains (commonly used on China's high-speed rail).

Double-arm pantographs (e.g., on some European locomotives): Offer greater stability but are heavier; suitable for heavy-haul locomotives.

3) Classification by application

· High-speed pantographs (e.g., CR400 "Fuxing" series): Optimized aerodynamics to reduce wind resistance and noise.

· Metro/tram pantographs: Compact design to accommodate the low clearance requirements of urban rail systems.

4. Common issues with pantographs

· Arcing: Poor contact generates sparks, damaging the contact strip and the overhead contact line.

· Contact strip wear: Continuous friction necessitates periodic replacement (carbon contact strips typically last 30,000–60,000 km).

· Icing effects: Cold climates can lead to poor contact; some pantographs are equipped with heating/de-icing systems.

· Aerodynamic effects: High-speed operation can generate noise and vibration, requiring design optimization.
