Applications of EDM (Electrical Discharge Machining)

Electrical Discharge Machining (EDM) is a manufacturing process that shapes a workpiece by using sparks generated through electrical

 discharges. A dielectric fluid separates two electrodes across which a voltage is applied, creating a rapidly fluctuating periodic electrical

 discharge to machine the material. One electrode is known as the tool electrode (or electrode head), while the other is the workpiece

 electrode (or simply the workpiece). During the EDM process, there is no physical contact between the tool electrode and the workpiece

 electrode.

Electrical Discharge Machining (EDM) is widely used in mold making and general machining. It enables the processing of ultra-hard

 materials and complex geometries that are difficult to handle with conventional cutting methods. Typically used for electrically

 conductive materials, EDM can create intricate cavities or contours in hard-to-machine materials such as titanium alloys, tool steels,

 carbon steels, and cemented carbides.

The primary machine tools utilizing this process include:

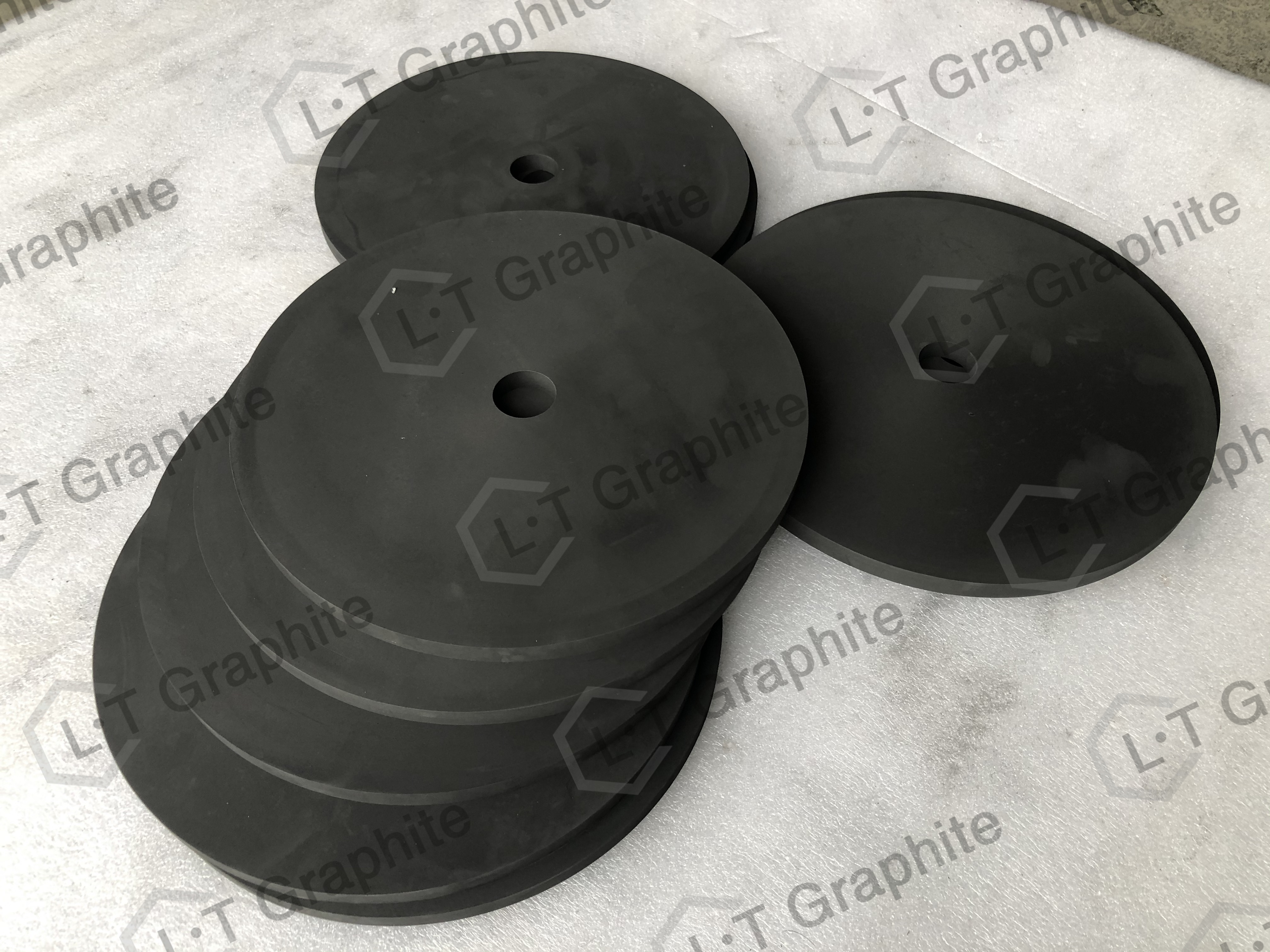

Sinker EDM machines (or die-sinking EDM): These typically employ graphite or copper electrodes. Both the tool and the workpiece are

 submerged in a kerosene-based dielectric fluid, and the shape of the tool electrode is replicated onto the workpiece through electrical

 discharge.

Wire-cut EDM machines: These use deionized water as the dielectric medium and brass or zinc-coated brass wire as the tool electrode

 (note: reciprocating wire-cut EDM machines developed in China typically use an emulsion fluid and molybdenum wire as the tool

 electrode).

Electrical Discharge Machining (EDM) offers the following advantages:

It can produce complex shapes and contours that are impossible to manufacture with conventional machining equipment.

It achieves high dimensional accuracy and tight tolerances, even when machining hard materials.

Unlike conventional machining, which involves cutting forces that can damage small or delicate workpieces, EDM exerts no such force.

It enables the machining of sharp internal corners within vessels and conduits.

It allows for the machining of tiny, deep holes with diameters as small as 0.015 inches.
