Graphite foil is a material that has gained significant attention in the field of advanced manufacturing due to its unique properties. As industries continue to evolve and demand higher performance from materials used in production processes, graphite foil is being explored for various innovative applications across a broad range of sectors. From heat management and thermal conductivity to sealing and lubrication, the versatility of graphite foil offers many advantages in modern manufacturing environments.
This article will provide a comprehensive overview of the applications of graphite foil in advanced manufacturing, highlight the benefits it offers, and address the challenges associated with its use.

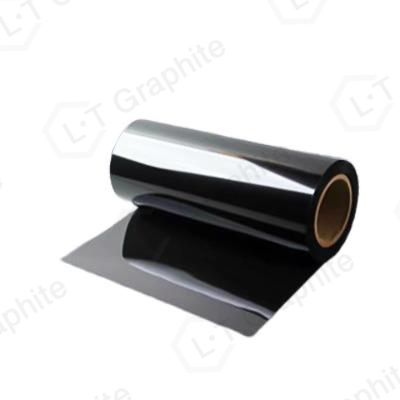

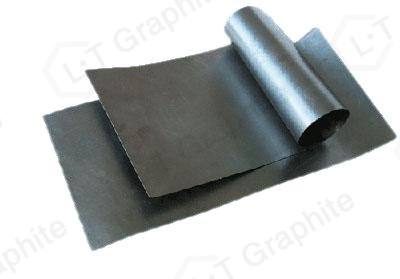

Graphite foil is a thin, flexible sheet made from expanded graphite. It is produced by exposing natural graphite to high heat, followed by a process that causes the graphite to expand and form a highly porous structure. This material is then compressed into a thin, flexible foil.
Graphite foil is known for its high thermal conductivity, chemical stability, and mechanical properties, which make it an excellent material for a wide range of industrial and manufacturing applications. Its versatility allows it to be used in a variety of industries, including electronics, automotive, aerospace, and renewable energy.
Before delving into the specific applications of graphite foil, it is important to understand the key properties that make it so valuable in advanced manufacturing. These properties include:
High Thermal Conductivity: Graphite foil has one of the highest thermal conductivities of any material, making it ideal for heat dissipation applications. It can efficiently transfer heat away from sensitive components, preventing overheating and ensuring optimal performance in high-temperature environments.
Flexibility and Conformability: Unlike rigid materials like metals, graphite foil is flexible and can conform to different shapes and sizes. This makes it useful for applications in compact or irregularly shaped environments where other materials may not fit.
Chemical Inertness: Graphite foil is chemically stable and resistant to corrosion, even in harsh environments. It is highly resistant to most acids, bases, and solvents, making it suitable for use in environments where chemical exposure is a concern.
Lightweight: Graphite foil is much lighter than metal-based alternatives, which is important in industries such as aerospace and automotive manufacturing, where weight reduction is a key design consideration.
Mechanical Strength: Despite its thin and flexible nature, graphite foil exhibits excellent mechanical strength and can withstand high-pressure environments, making it suitable for sealing and gasketing applications.
Graphite foil’s unique properties make it an ideal material for a variety of applications in advanced manufacturing. Below are some of the most prominent applications:
In advanced electronics, especially in high-performance devices such as smartphones, laptops, and electric vehicles (EVs), efficient heat management is crucial. The increasing complexity and power of modern electronic devices generate significant amounts of heat, which must be dissipated to avoid damage to sensitive components.
Graphite foil is widely used in thermal interface materials (TIMs) for heat management in electronic devices. Its excellent thermal conductivity allows it to efficiently transfer heat from hot spots (such as processors or power modules) to heat sinks or other cooling systems. Graphite foil is also used as a thermal spreader to evenly distribute heat across the surface of a component, ensuring that the temperature remains stable and the device operates optimally.
Graphite foil is commonly used as a sealing material in high-temperature applications, where other materials may fail due to heat or chemical exposure. For example, in power generation and chemical processing industries, graphite foil is used in gaskets to provide an effective seal between two surfaces, preventing leakage of gases, liquids, or other substances.
Its flexibility allows it to conform to irregular shapes, ensuring a tight seal even in complex machinery. The material’s chemical inertness also ensures that it will not degrade when exposed to harsh chemicals, oils, or other corrosive substances, making it ideal for use in environments with high-temperature and corrosive conditions.
In the automotive and aerospace industries, weight reduction is a critical factor for improving fuel efficiency and overall performance. Graphite foil offers a lightweight, high-performance solution for various applications, including heat shields, seals, and insulation.
Heat Shields: Graphite foil is used in heat shields to protect sensitive components from excessive heat, such as exhaust systems in vehicles or engines in aircraft. Its high thermal conductivity ensures that heat is efficiently redirected away from critical components, improving safety and reliability.
Gaskets and Seals: In engines and other high-performance automotive systems, graphite foil is used to create gaskets and seals that can withstand high temperatures and prevent leakage of fluids or gases. Its ability to maintain its mechanical properties under extreme conditions makes it an ideal choice for sealing applications in the automotive sector.
Thermal Insulation: Graphite foil is used as thermal insulation material in both automotive and aerospace manufacturing. It helps to maintain the required temperature within systems while preventing heat from affecting surrounding components.
In renewable energy systems, particularly in solar panels and batteries, efficient heat management is crucial for ensuring long-term performance and safety. Graphite foil is used in several renewable energy applications, including:
Battery Thermal Management: In lithium-ion batteries, which are commonly used in electric vehicles and renewable energy storage systems, graphite foil is employed to manage heat during charging and discharging cycles. Excessive heat can reduce battery efficiency and lifespan, so graphite foil helps to dissipate heat, ensuring the batteries remain within safe operating temperatures.
Solar Panels: Graphite foil is used in solar panels to manage the heat generated by sunlight exposure. It helps prevent overheating, which can degrade the performance and longevity of the panels.
Graphite foil’s chemical resistance makes it an invaluable material in industrial and chemical processes. In high-temperature furnaces and reactors, graphite foil is used as a heat-resistant barrier to protect equipment from excessive heat or chemicals. It is also used in chemical processing systems as a lining material for reaction vessels or pipes to prevent corrosion and ensure the integrity of the system.
In some manufacturing processes, graphite foil is used as a lubricant or part of a lubrication system. Its ability to reduce friction and wear between moving parts makes it an ideal material for applications where metal-to-metal contact is present. Graphite foil can be used in environments where traditional lubricants may fail due to high temperatures or chemical exposure, providing a reliable alternative to conventional lubricating materials.
Graphite foil offers a wide range of benefits when used in advanced manufacturing processes:
Enhanced Thermal Efficiency: Its high thermal conductivity ensures efficient heat management, preventing overheating and improving the overall performance and reliability of systems.
Cost-Effective: Despite being a high-performance material, graphite foil can often be more cost-effective than alternatives like metals and ceramics, particularly in lightweight applications.
Chemical Resistance: Its resistance to chemicals and corrosion allows it to perform well in harsh environments, reducing the need for frequent maintenance and replacements.
Customization: Graphite foil can be easily customized to fit specific applications, making it an ideal solution for industries with unique or complex manufacturing requirements.
Long Lifespan: Due to its mechanical strength and resistance to wear, graphite foil offers long-lasting durability in demanding environments, reducing maintenance costs.
While graphite foil offers many advantages, there are some challenges associated with its use:
Cost: The initial cost of graphite foil can be higher than some other materials, which may be a limiting factor for some manufacturers. However, this can be mitigated by the material's durability and long lifespan, which can reduce maintenance and replacement costs.
Handling and Processing: Graphite foil is a relatively delicate material and can be challenging to handle in certain applications. Care must be taken during the manufacturing process to ensure that it is properly cut, shaped, and applied to avoid damage.
Integration with Other Materials: Graphite foil must be integrated carefully with other materials to ensure optimal performance. In some cases, it may not bond well with certain substances or may require specialized adhesives or treatments to achieve the desired result.
Graphite foil is a highly versatile and effective material in advanced manufacturing. Its unique combination of high thermal conductivity, chemical resistance, flexibility, and mechanical strength makes it an excellent choice for a wide range of applications across various industries. From heat management in electronics and automotive systems to sealing and lubrication in industrial processes, graphite foil offers significant advantages in improving the performance, durability, and efficiency of manufacturing systems.
While there are some challenges associated with its use, the benefits of graphite foil far outweigh the drawbacks, making it an invaluable material for the future of advanced manufacturing. As industries continue to push for higher performance and more sustainable manufacturing practices, graphite foil will undoubtedly play a crucial role in achieving these goals.
