The graphite crystallizer-also known as a graphite mold for copper tube continuous casting is a core component in the continuous casting process for copper and copper alloy tubes; it plays a decisive role in the formation, cooling, and ultimate quality of the cast billet. Widely utilized in both upward and horizontal continuous casting processes, it serves as a critical tool for the production of various products, including copper tubes for air conditioning, plumbing, and oxygen-free copper busbars.

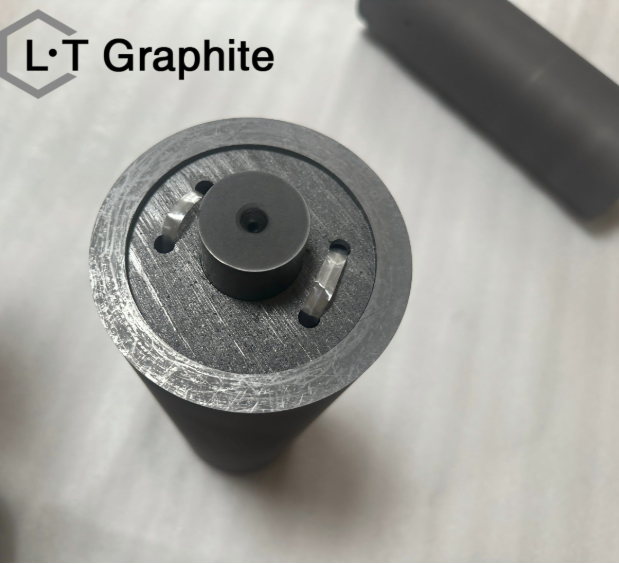

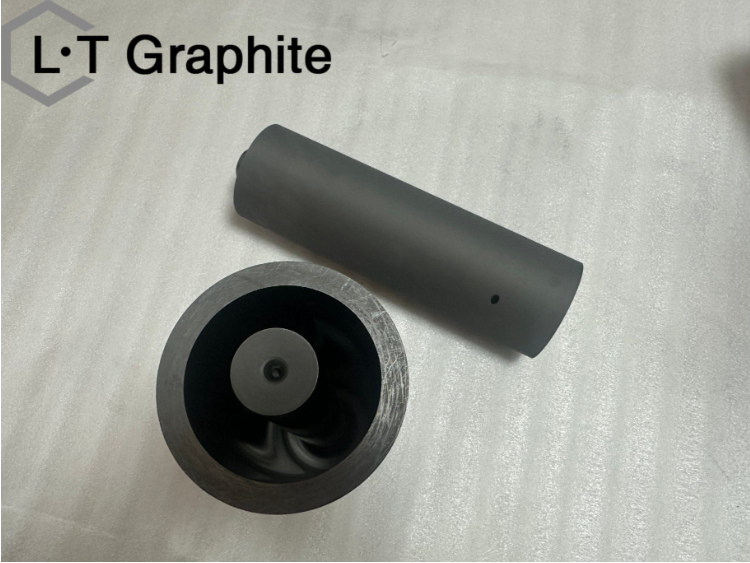

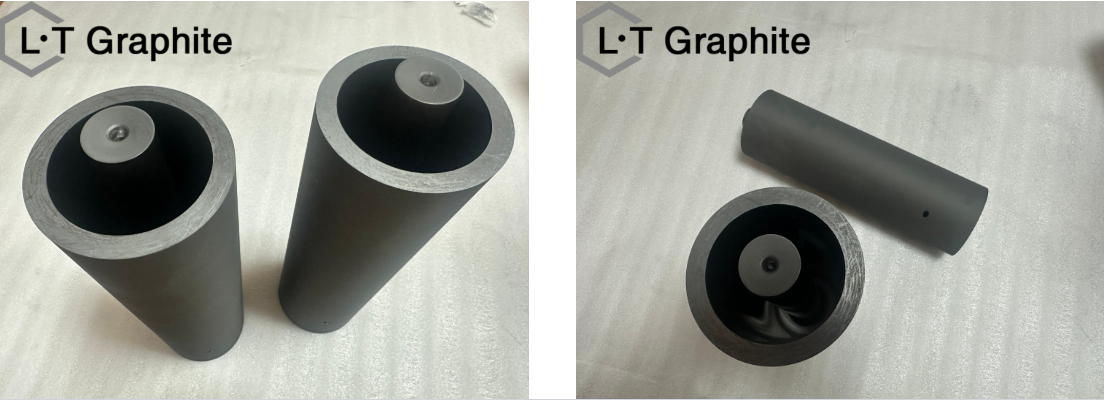

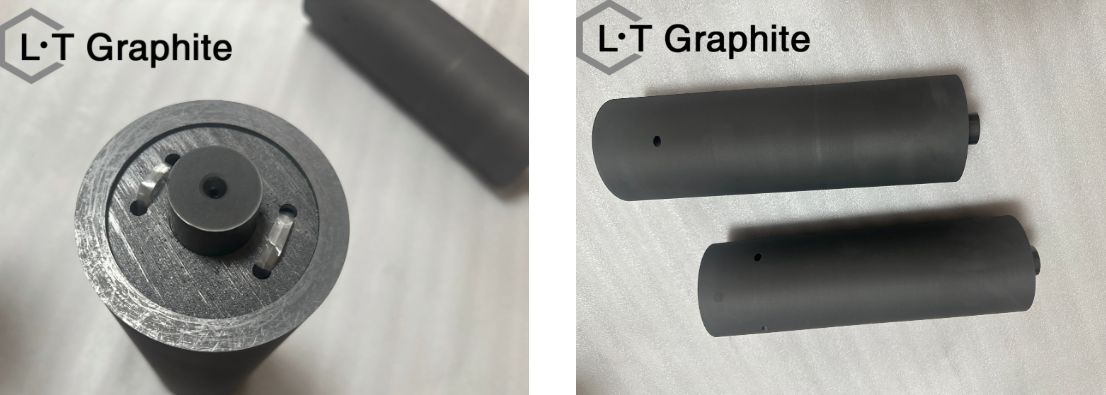

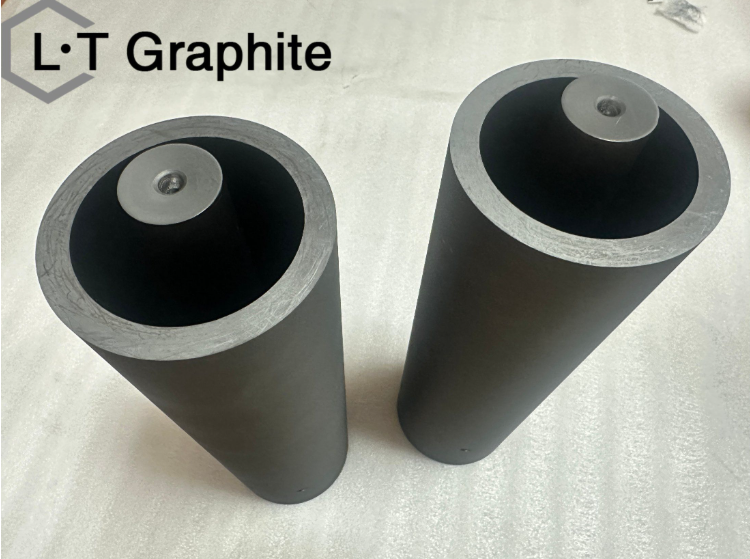

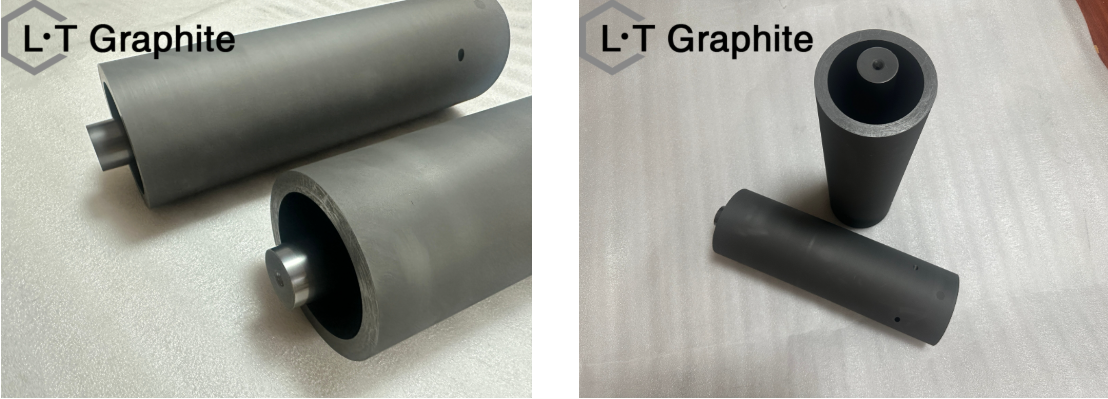

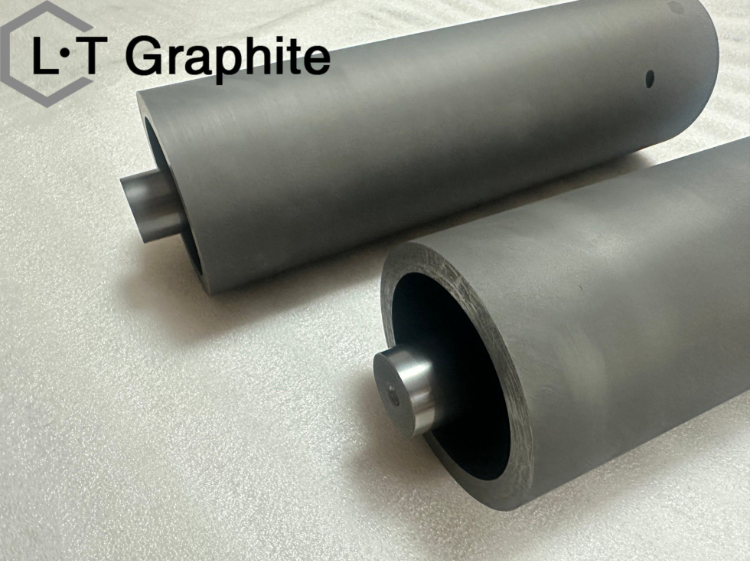

It is a mold assembly fabricated from high-purity isostatic graphite, comprising two main components: a graphite outer sleeve (outer mold) and a graphite core rod (inner mold):
1. Graphite Outer Sleeve:
Determines the outer diameter of the copper tube. Its outer surface interfaces with a water-cooled copper jacket to facilitate the rapid cooling and solidification of the molten copper.

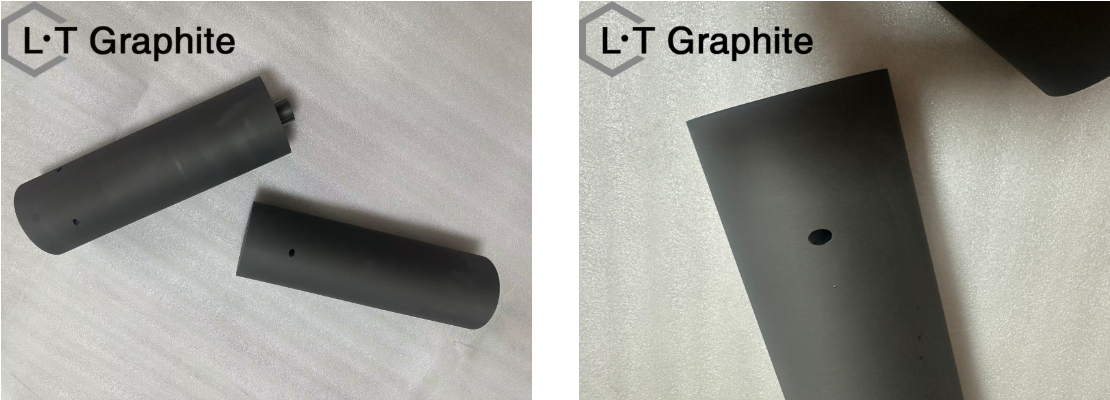

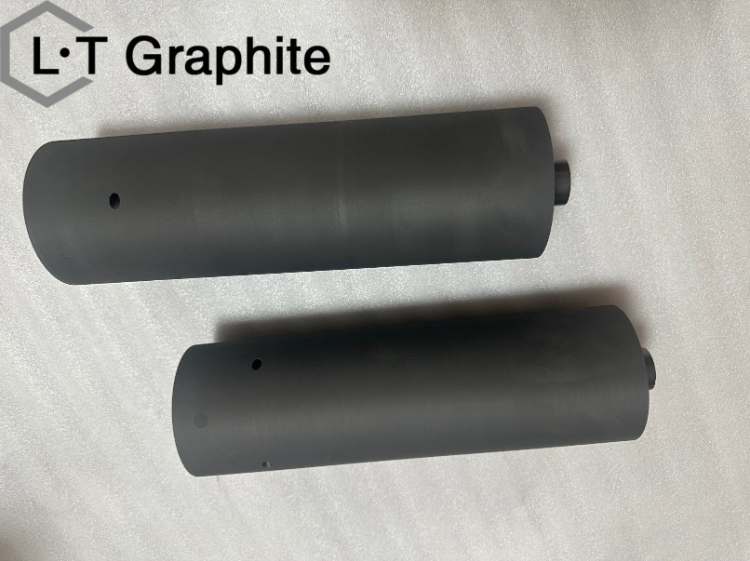

2. Graphite Core Rod:
Determines the inner diameter and wall thickness of the copper tube. It fits coaxially within the outer sleeve to form an annular casting cavity.

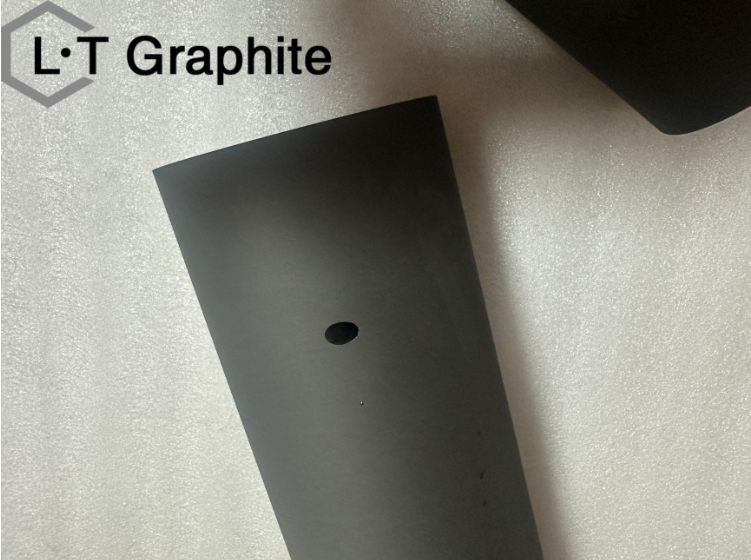

3. Certain structural designs may incorporate vent holes or guide grooves
alternatively, a raised ring feature may be designed onto the core rod to optimize the smoothness of the cast billet's inner wall and enhance the density of its metallurgical structure.
orming and Shaping:
High-temperature molten copper (1100-1200°C) flows through the annular gap formed between a graphite outer sleeve and a core rod; it undergoes forced cooling and solidification, directly forming a hollow tube billet that precisely matches the target dimensions.
2. Efficient Cooling:
The high thermal conductivity of graphite, combined with an external water-cooling jacket, facilitates rapid and uniform cooling. This process refines the grain structure of the molten copper, thereby enhancing the strength, toughness, and electrical conductivity of the cast billet.
3. Anti-Adhesion and Demolding:
The self-lubricating properties of graphite prevent the molten copper from adhering to the mold walls. This ensures that the surface of the cast billet remains smooth and free of drag marks, thereby minimizing defects in subsequent processing stages.
4. Protection Against Oxidation and Contamination:
High-purity graphite possesses stable chemical properties; it does not react with the molten copper and effectively isolates the melt from the surrounding air, thereby preventing oxidation of the cast billet. Consequently, it serves as the preferred mold material for the production of high-purity oxygen-free copper tubes.

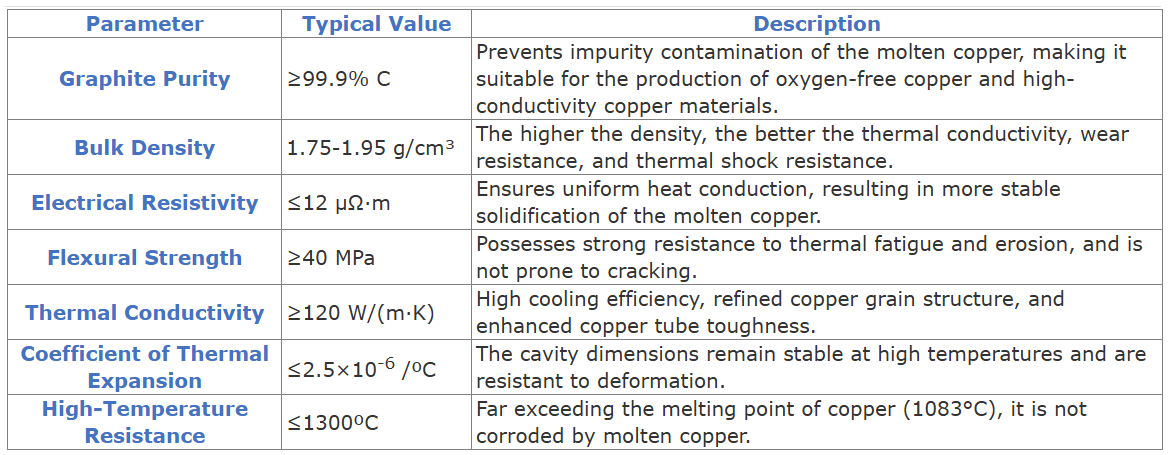

1. Excellent High-Temperature Resistance and Dimensional Stability
1) Graphite boasts an exceptionally high melting point of up to 3850°C, allowing it to effortlessly withstand the high temperatures of molten copper (1083°C) without deforming or softening during prolonged operation.
2) It possesses an extremely low coefficient of thermal expansion (≤2.5×10-6/°C); consequently, the dimensions of the mold cavity remain virtually unchanged at high temperatures, ensuring stable precision in the copper tube's outer diameter and wall thickness, thereby preventing issues such as "mold drift" or dimensional deviations.
2. High Thermal Conductivity and Efficient Cooling
1) Its thermal conductivity far surpasses that of metals such as steel and iron, enabling it to rapidly dissipate heat from the molten copper and facilitate uniform, rapid solidification within the mold.
2) Uniform cooling refines the copper's grain structure, thereby enhancing the copper tube's strength, toughness, and ductility, while simultaneously reducing the risk of cracking during subsequent processing.
3. Self-Lubricating and Non-Adhesive to Copper; Excellent Surface Quality of Finished Products
1) Graphite inherently possesses self-lubricating properties; thus, once the molten copper solidifies, the friction between the copper and the mold wall remains minimal, ensuring smooth demolding without scratching or damaging the surface of the copper tube.
2) It does not chemically react with molten copper, thereby preventing contamination of the copper's composition. The resulting copper tubes feature smooth inner walls free of oxide scale and drag marks-making them particularly suitable for high-surface-quality applications, such as TP2 copper tubes for air conditioning systems and oxygen-free copper tubes.
4. Strong Chemical Stability and Erosion Resistance
1) It exhibits stable chemical properties at both ambient and high temperatures, demonstrating resistance to acids, alkalis, and erosion by molten copper; it remains uncorroded and unoxidized even when exposed to high-temperature molten copper.
2) The inner walls of the mold are resistant to the formation of "nodules" or slag buildup, allowing the mold cavity to maintain its smooth finish over extended periods and reducing the frequency of downtime required for cleaning.
5. Superior Mechanical Properties and Service Life
1) Manufactured using isostatically pressed high-purity graphite (density ≥1.85 g/cm³), it features high flexural strength and excellent thermal shock resistance, making it highly resistant to cracking even under repeated thermal cycling.
2) Its service life is 3 to 10 times longer than that of traditional metal molds, resulting in lower long-term operating costs and a reduction in production downtime losses associated with frequent mold replacements.
6. Highly Customizable and Adaptable to Various Processes
1) The dimensions of the outer sleeve and mandrel can be customized based on copper tube specifications (outer diameter, wall thickness, and length) to accommodate various continuous casting processes, such as the upward casting and horizontal casting methods.
2) Furthermore, structures such as vent holes and flow channels can be designed according to specific requirements to optimize the flow of molten copper and minimize defects such as porosity and shrinkage looseness.
As the core component determining billet quality and production efficiency in the continuous casting process for copper tubes, this product is widely utilized in the production of pure copper and copper alloy tubes, rods, and profiles. The following is a detailed breakdown of specific scenarios and applications:
1. Air Conditioning and Refrigeration Industry (Most Prevalent)
1) Production of TP2 pure copper refrigerant tubes and heat exchanger tubes (e.g., thin-walled tubes ranging from Φ6 to Φ25 mm) for use in the refrigeration systems of residential and commercial air conditioners, refrigerators, and cold storage facilities.
2) The high thermal conductivity and self-lubricating properties of the graphite mold ensure that the inner walls of the copper tubes remain free of oxide scale and possess a high degree of surface finish; furthermore, their pressure resistance and leak-tightness meet the stringent requirements for refrigerant circulation systems.
2. Building Plumbing, Drainage, and Gas Engineering
1) Production of copper water supply pipes for residential and hotel applications, gas transmission pipes, and water manifolds, serving as a superior alternative to traditional plastic or galvanized pipes.
2) Copper tubes cast using graphite molds are free from impurity contamination, exhibit excellent resistance to acid and alkali corrosion, boast a service life exceeding 50 years, and fully comply with hygiene standards for drinking water.
3. Electrical and New Energy Sectors
1) Production of oxygen-free copper busbars, bus ducts, and conductive copper strips for use in the conductive connections of photovoltaic power stations, energy storage systems, and electric vehicle charging piles.
2) Since graphite does not react with molten copper, it enables the production of oxygen-free copper with a purity of ≥99.95% and an electrical conductivity reaching 100% IACS, thereby meeting the demands of high-conductivity applications.
4. Automotive and Rail Transit Industries
1) Production of copper tubes for automotive air conditioning, brake lines, and heat dissipation systems, as well as copper billets for overhead contact lines in high-speed rail and subway systems, and copper tubes for electrical cables.
2) The molds can be customized to produce profiles with irregular cross-sections (e.g., oval or flattened tubes), thereby accommodating the specific requirements for vehicle lightweighting and spatial design.
5. Industrial Precision Tubing and Copper Alloy Products
1) Production of capillary tubes, hydraulic system tubing, and precision thin-walled tubes for instrumentation and control systems, achieving dimensional accuracy levels of up to ±0.05 mm.
2) Suitable for the continuous casting of various copper alloys-including brass, bronze, and cupronickel-for use in the manufacture of industrial components such as valves, pipe fittings, and decorative profiles.
