Graphite electrodes play a crucial role in various industrial processes, especially in electric arc furnaces (EAFs) for steelmaking, where they conduct electricity to generate the intense heat required for melting scrap metal and other raw materials. The production of high - quality graphite electrodes is a complex and multi - step process that demands precision and strict quality control. This article will comprehensively explore each step in the manufacturing of graphite electrodes.
The quality of the final graphite electrode is highly dependent on the purity and properties of the raw materials used. Several key raw materials are involved in the production process.
Petroleum coke is one of the primary raw materials for making graphite electrodes. It is a carbon - rich solid by - product obtained from the oil refining process, specifically from the coker units. High - quality petroleum coke is characterized by its low sulfur content, low ash content, and high fixed carbon content. The low sulfur and ash contents are crucial as sulfur can cause brittleness in the electrode, and ash can contaminate the steel during the melting process in the EAF. The carbon in petroleum coke serves as the main structural component of the graphite electrode, providing the necessary electrical conductivity and strength.
Pitch binder is used to bind the carbon particles together. It is a viscous, black, and sticky substance obtained from coal tar distillation. Pitch has excellent adhesive properties and can fill the voids between the carbon particles, ensuring a homogeneous mixture during the manufacturing process. The type of pitch used can significantly impact the properties of the final electrode. Coal tar pitch, for example, is commonly used due to its high softening point and good carbon - yield upon baking. During the subsequent processing steps, the pitch will be carbonized, further strengthening the structure of the graphite electrode.
Needle coke is another important raw material, especially for high - power and ultra - high - power graphite electrodes. It has a unique needle - like crystalline structure, which gives the electrodes superior mechanical strength, electrical conductivity, and oxidation resistance. Needle coke is produced from specific feedstocks, such as catalytic cracking cycle oil or aromatic - rich residues. Compared to petroleum coke, needle coke has a more ordered microstructure, resulting in better performance under high - temperature and high - current conditions in the EAF.
In an effort to be more environmentally friendly and cost - effective, some manufacturers may incorporate recycled graphite into the production process. Recycled graphite can be obtained from used graphite electrodes or other graphite - containing products. However, its use requires careful consideration as the quality and properties of recycled graphite can vary significantly. It needs to be properly processed and blended with primary raw materials to ensure that the final graphite electrode meets the required quality standards.
Once the raw materials are selected, they need to be properly prepared before further processing.
The initial step in raw material preparation is crushing and grinding. Petroleum coke, needle coke, and recycled graphite (if used) are large - sized materials that need to be reduced to smaller particles. Crushers are used to break the large chunks of coke into smaller pieces, and then grinders, such as ball mills or roller mills, are employed to further reduce the particle size. This process is essential to ensure that the particles can be evenly mixed with the pitch binder in subsequent steps.
Milling is a more refined process that follows crushing and grinding. It aims to achieve a specific particle size distribution for the raw materials. By controlling the milling process, manufacturers can ensure that the particles are of the appropriate size to create a well - structured graphite electrode. Different types of mills, such as vibratory mills or attrition mills, can be used depending on the desired particle characteristics.
After milling, the particles are screened to separate them based on size. Sieves with different mesh sizes are used to ensure that only particles within a specific size range are selected for the next stage of production. This helps in achieving a consistent mixture and avoiding any issues related to particle size variations, which could affect the quality and performance of the graphite electrode.
The final step in raw material preparation is blending. The screened particles of petroleum coke, needle coke, and recycled graphite (if applicable) are mixed together in precise proportions. The pitch binder is also added during this stage. Blending is typically carried out in a mixer, which ensures a homogeneous mixture. The proportion of each raw material in the blend depends on the type of graphite electrode being produced, such as low - power, high - power, or ultra - high - power electrodes.
After the raw materials are blended, the mixture undergoes further mixing and grinding. This step helps to ensure that the pitch binder is evenly distributed among the carbon particles. Specialized mixers, such as continuous or batch - type mixers, are used for this purpose. The mixing process also helps to break down any agglomerates of particles, resulting in a more uniform mixture.
Kneading is a crucial process that transforms the mixed raw materials into a dough - like homogeneous mixture. Kneaders apply mechanical pressure and shear forces to the mixture, causing the pitch binder to coat the carbon particles thoroughly. This dough - like consistency is essential for the subsequent molding process. During kneading, the temperature of the mixture is carefully controlled as the pitch binder's viscosity is temperature - dependent.
Controlling the viscosity of the mixture during the kneading process is vital. If the viscosity is too high, the mixture will be too stiff, making it difficult to mold. On the other hand, if the viscosity is too low, the mixture may not hold its shape during molding. By adjusting the temperature and the amount of pitch binder, manufacturers can achieve the optimal viscosity for the molding process.
Extrusion is one of the common methods for molding graphite electrodes. In this process, the kneaded dough - like mixture is forced through a die of the desired shape and size. The extrusion process can be either continuous or semi - continuous. As the mixture passes through the die, it takes on the shape of the electrode. Extrusion is suitable for producing electrodes with simple geometries, such as round or square cross - sections.
Vibratory molding involves placing the kneaded mixture into a mold and subjecting it to high - frequency vibrations. The vibrations help to compact the mixture and remove any air bubbles, resulting in a more dense and uniform structure. This method is often used for producing electrodes with complex shapes or for achieving a higher density compared to extrusion.
Isostatic molding is a more advanced technique used for high - quality graphite electrodes. In this process, the kneaded mixture is placed in a flexible rubber mold, which is then immersed in a fluid medium, such as oil. High pressure is applied uniformly from all directions to the mold. This uniform pressure ensures that the electrode has a consistent density and strength throughout its volume. Isostatic molding is particularly suitable for producing large - diameter and high - performance graphite electrodes.
Regardless of the molding method used, a compaction and pre - forming step usually follows. This step further densifies the molded electrode and gives it the final shape and dimensions before the subsequent baking and impregnation processes. Compaction can be achieved through mechanical pressing or other methods to ensure that the electrode has the required mechanical strength and density.
The molded graphite electrodes are then placed in a baking furnace and heated to around 1000°C for several days. During the baking process, the pitch binder in the electrode undergoes carbonization. The heat causes the pitch to lose volatile components and transform into a carbon matrix, which binds the carbon particles together more firmly. This process also improves the mechanical strength and electrical conductivity of the electrode.
After baking, the electrodes are impregnated with pitch. Impregnation is carried out under vacuum and pressure conditions to ensure that the pitch fills the pores and voids within the electrode structure. This process increases the density and reduces the porosity of the electrode, thereby enhancing its oxidation resistance and mechanical strength. The impregnated pitch will also be carbonized in the subsequent rebaking process.
Following impregnation, the electrodes are rebaked. The rebaking process is similar to the initial baking but may have different temperature and time profiles. Rebaking carbonizes the newly impregnated pitch, further strengthening the electrode structure and improving its overall performance.
Graphitization is the process that converts the carbon structure of the electrode into a highly ordered graphite structure. The electrodes are placed in a graphitizing furnace and heated to extremely high temperatures, typically in the range of 2800 - 3000°C. At these high temperatures, the carbon atoms rearrange themselves into a hexagonal lattice structure characteristic of graphite.
One of the commonly used graphitizing furnaces is the Acheson furnace. In an Acheson furnace, the electrodes are surrounded by a resistive heating medium, such as petroleum coke powder. An electric current is passed through the heating medium, generating heat through resistance. This heat is then transferred to the electrodes, causing the graphitization process.
Internal resistance heating is another method for graphitization. In this method, the electrodes themselves act as the resistive element. An electric current is passed directly through the electrodes, and the resistance of the electrodes generates the heat required for graphitization. This method can be more energy - efficient and provides better control over the heating process.
As the temperature in the graphitizing furnace reaches the appropriate level, the carbon in the electrode gradually transforms into graphite. The highly ordered graphite structure gives the electrode superior electrical conductivity, thermal conductivity, and mechanical properties, making it suitable for use in high - temperature industrial processes.
After the graphitization process is complete, the electrodes are allowed to cool slowly. Rapid cooling can cause thermal stress and cracking in the electrodes. The cooling process may take several days, depending on the size and type of the electrodes.
Once the electrodes are cooled, they undergo post - graphitization checks. These checks include visual inspections for any surface defects, as well as tests to ensure that the graphite structure has been properly formed and that the electrode meets the required quality standards in terms of electrical conductivity, mechanical strength, and density.
After graphitization, the graphite electrodes may require shaping and turning to achieve the final dimensions. Turning machines are used to remove excess material from the surface of the electrodes, ensuring that they have the correct diameter, length, and surface finish. This process is crucial for ensuring a proper fit when the electrodes are used in electric arc furnaces.

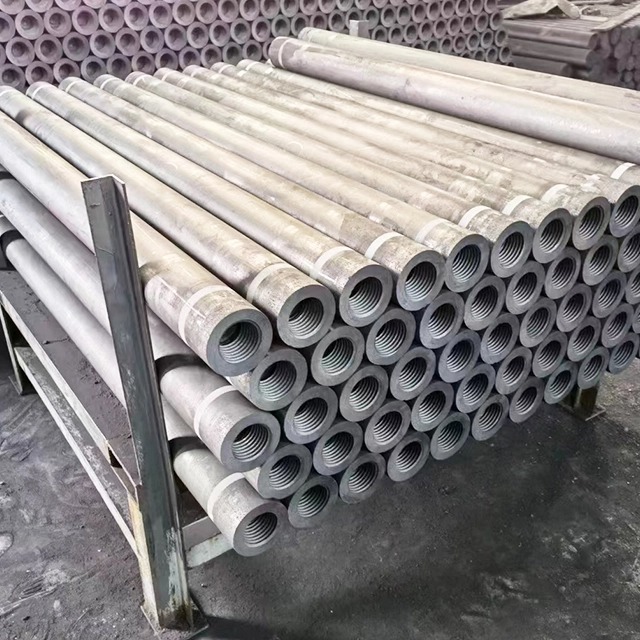

Most graphite electrodes need to be connected together to form longer electrodes for use in EAFs. Threading is carried out to create male and female threads on the ends of the electrodes, which allow them to be screwed together using nipples. Drilling may also be required to create holes for the insertion of cooling pipes or for other purposes.
Surface finishing is the final step in the machining process. It involves polishing the surface of the electrodes to remove any burrs, scratches, or other imperfections. A smooth surface finish not only improves the appearance of the electrodes but also reduces the risk of oxidation and improves the electrical contact when the electrodes are in use.
The first aspect of quality inspection is checking the accuracy of the electrode's dimensions. Using precise measuring instruments, such as calipers and micrometers, the diameter, length, and thread dimensions of the electrodes are measured to ensure that they meet the specified tolerances. Any deviation from the required dimensions can affect the performance of the electrodes in the EAF.
Mechanical strength checks are essential to ensure that the electrodes can withstand the mechanical stresses during handling, installation, and use in the EAF. Tests such as compression tests, bending tests, and impact tests are conducted to measure the electrode's strength and toughness. The results of these tests are compared to the standard requirements for the specific type of graphite electrode.
Since graphite electrodes are used to conduct electricity, checking their electrical conductivity is crucial. Specialized equipment is used to measure the electrical resistance of the electrodes. The measured resistance values are then used to calculate the electrical conductivity, which should fall within the acceptable range for the intended application.
Density and porosity checks are carried out to ensure that the electrodes have the proper internal structure. High - density electrodes with low porosity generally have better performance in terms of oxidation resistance and mechanical strength. Techniques such as pycnometry or X - ray computed tomography can be used to measure the density and porosity of the electrodes.
Surface checks involve a visual inspection of the electrode's surface for any defects, such as cracks, pits, or uneven surfaces. These defects can affect the performance and lifespan of the electrodes. In addition to visual inspection, non - destructive testing methods, such as ultrasonic testing or magnetic particle inspection, may also be used to detect internal or surface - near defects.
Since the electrodes are connected using threads and nipples, the quality of the threads and nipples is also inspected. The threads should be properly formed, without any burrs or damage, and the nipples should fit securely onto the electrodes. Thread pitch, diameter, and thread engagement length are all carefully checked to ensure a reliable connection.
Once the graphite electrodes pass all the quality inspection tests, they are ready for packaging. The electrodes are usually wrapped in protective materials, such as plastic film or paper, to prevent damage during transportation and storage. They may also be placed in wooden crates or metal containers for added protection. The packaging is labeled with relevant information, such as the electrode type, size, and manufacturing date.
Q: What is the most important raw material in graphite electrode production?
A: Petroleum coke is a primary and crucial raw material, but the importance can vary depending on the type of electrode being made; for high - power electrodes, needle coke is also extremely significant.
Q: Why is the graphitization process so important?
A: It transforms the carbon structure into graphite, greatly enhancing electrical conductivity, thermal conductivity, and chemical stability, which are essential for the electrode's performance.
Q: How long does the entire manufacturing process of graphite electrodes take?
A: The process can take several weeks, depending on factors such as the type of electrode, the production method, and the number of processing steps required.
Q: Can any type of pitch be used as a binder?
A: No, specific pitches with appropriate softening points, viscosities, and coking values are selected to ensure proper bonding and electrode properties.
In conclusion, graphite electrodes are essential in diverse industries, powering processes from steel production to battery manufacturing with their excellent conductivity, high - temperature resistance, and chemical stability. As industries innovate and demand for quality materials grows, these electrodes become increasingly crucial.
