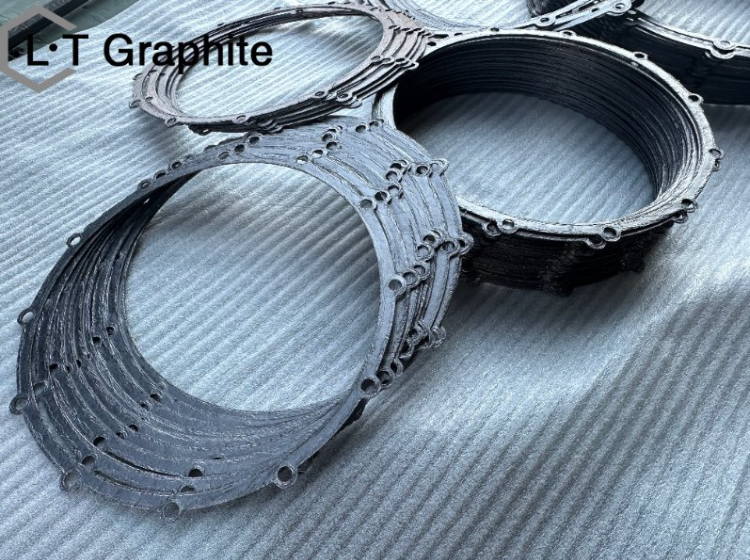

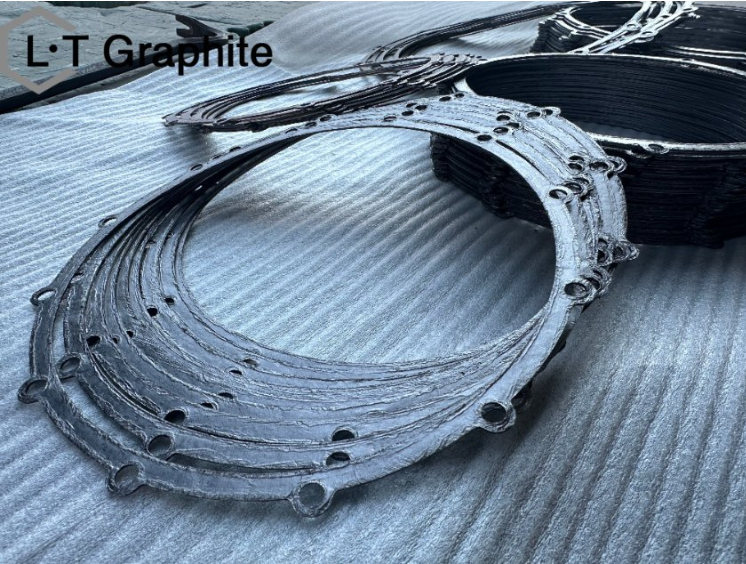

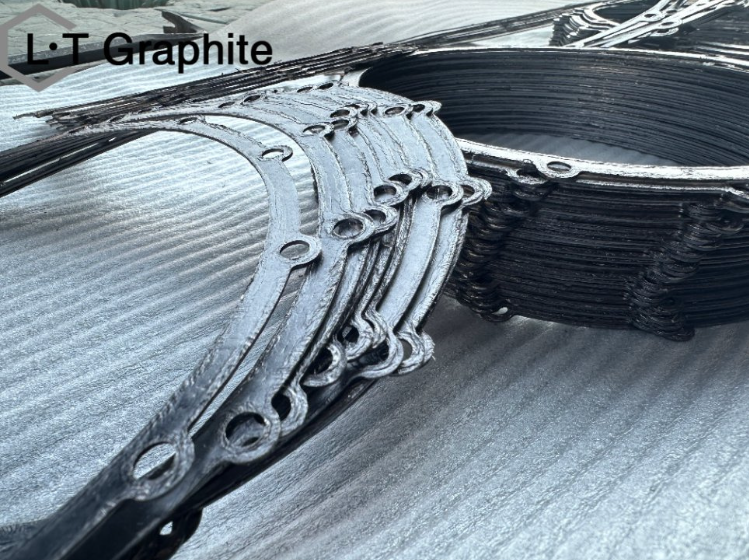

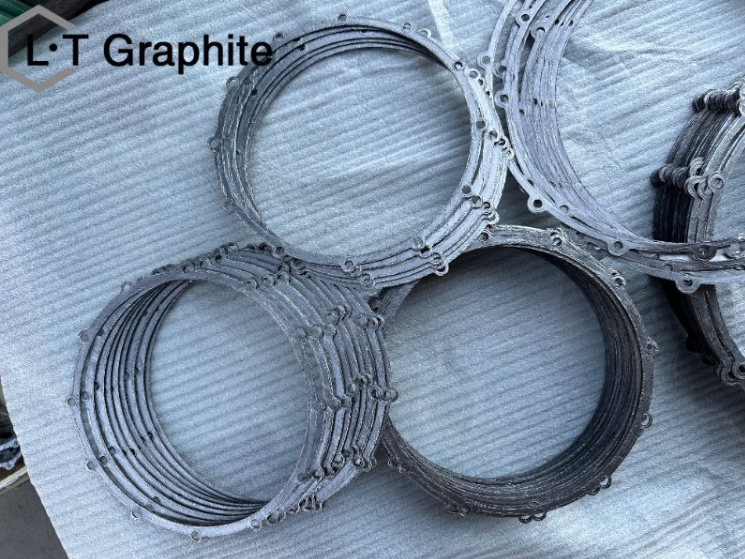

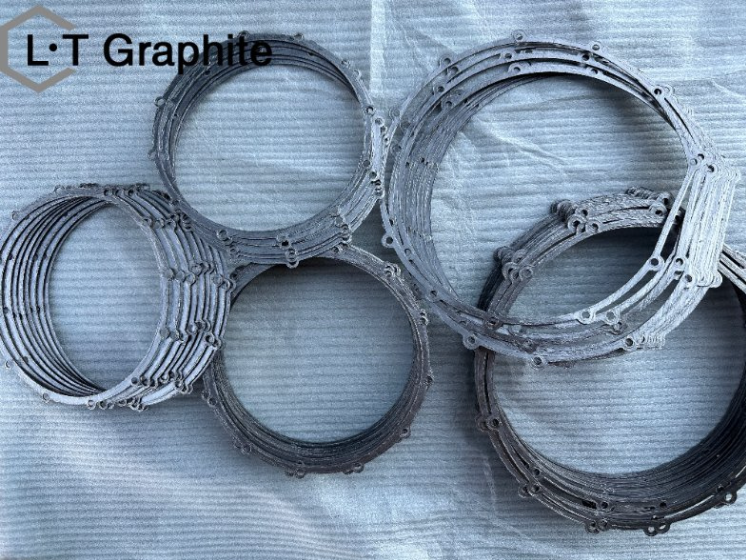

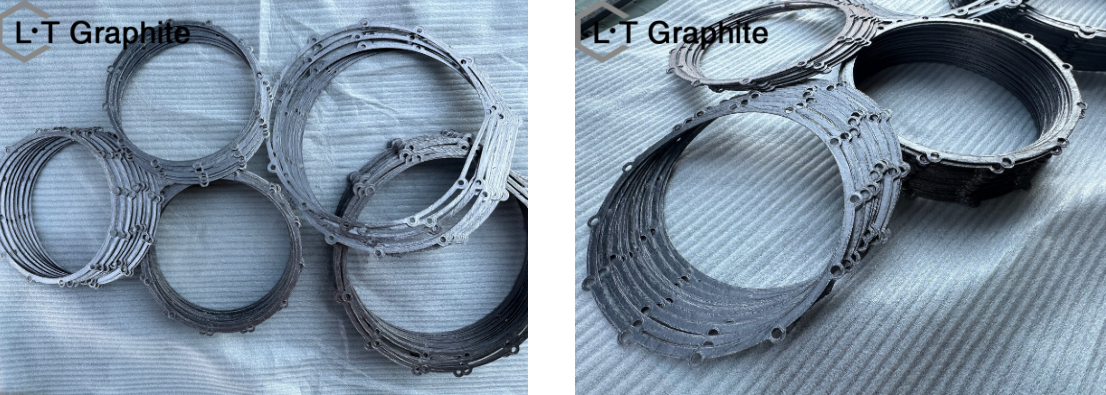

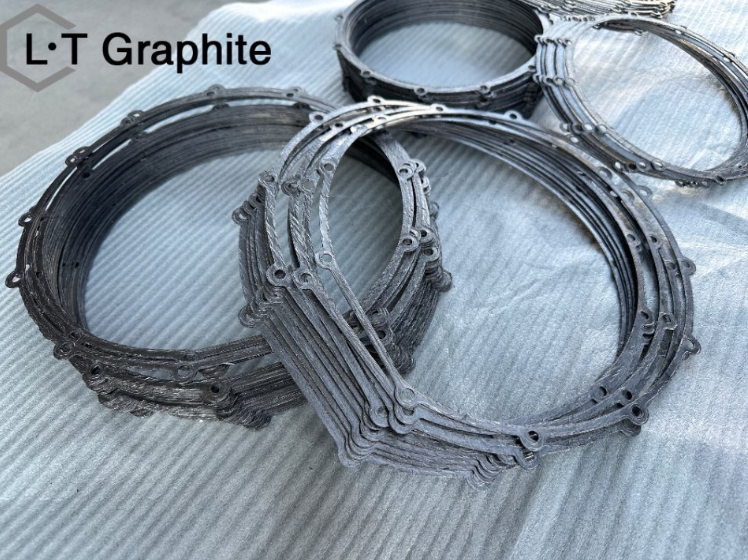

The primary function of an oil pump gasket is to ensure a reliable seal at the pump's connection points, thereby preventing fluid leakage and guaranteeing the stable operation of the system. Although small in size, it is a critical component that significantly impacts equipment safety and longevity-particularly in high-pressure and high-temperature environments such as those found in automotive engines and industrial machinery.In terms of practical functionality, its utility can be categorized into the following key points:
1. Sealing and Leak Prevention
During operation, the internal pressure within an oil pump is substantial; the gasket serves to tightly fill the gaps at the interface, effectively preventing the leakage of fuel or lubricating oil. Should the gasket fail, it not only results in the wasteful loss of fluids but may also create fire hazards or contaminate the engine compartment.
2. Maintaining Stable Oil Pressure
A robust seal is essential for ensuring consistent pressure within the oil circulation system. If the gasket ages or becomes deformed, it can lead to insufficient fuel supply or inadequate lubrication, thereby accelerating engine wear and compromising power output.
3. Blocking External Contaminants
The gasket also acts as a physical barrier, preventing impurities-such as dust and moisture-from entering the oil system. This safeguards the purity of the engine oil and extends the service life of both the oil pump and the engine itself.
4. Adapting to Complex Operating Conditions
To withstand high temperatures and corrosive environments, modern gaskets frequently utilize materials such as fluorocarbon rubber (FKM), nitrile rubber (NBR), or metal composites. These materials possess exceptional heat resistance and anti-aging properties, ensuring reliable and stable performance over the long term.
5. Enhancing Assembly Reliability
Some high-performance gaskets feature a dual-layer structure combining rubber and metal. This design ensures uniform pressure distribution during installation and offers excellent resilience; consequently, the gasket maintains its sealing effectiveness even after multiple disassembly and reassembly cycles, thereby minimizing maintenance-related risks.

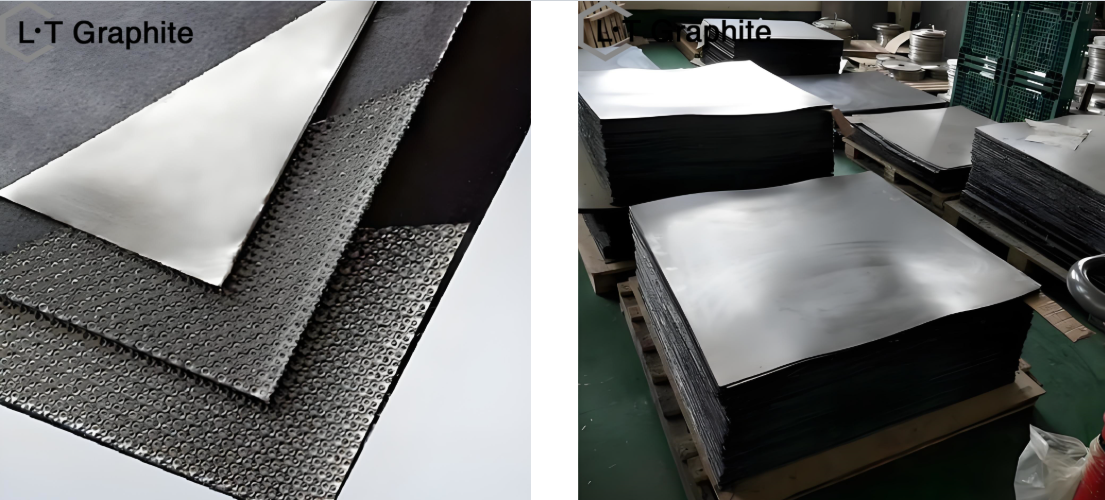

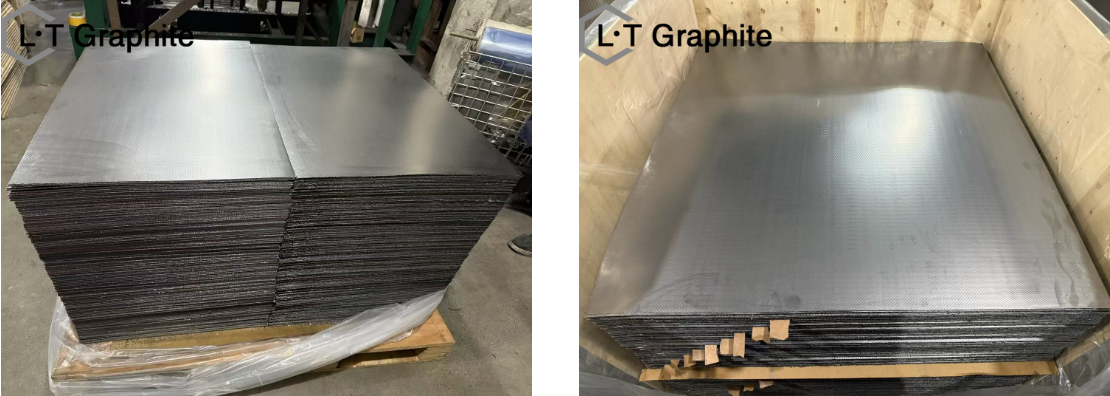

Graphite-Reinforced Sheet (also known as reinforced graphite sheet, high-strength graphite sheet, or flexible graphite composite sheet) is a high-performance sealing material that utilizes flexible graphite as a matrix, with its mechanical strength enhanced through the incorporation of metallic materials.
It is typically manufactured by subjecting metal sheets, such as perforated plates, mesh plates, or solid plates made of stainless steel (e.g., SS304, SS316) or tinplate to high-temperature compression alongside expanded graphite particles; in this structure, the metal layer serves as a reinforcing skeleton, while the graphite layer provides excellent sealing performance.
This material combines the corrosion resistance and high/low-temperature tolerance of flexible graphite with the high-strength characteristics of metal; possessing excellent compressibility, resilience, and compressive strength, it is ideally suited for industrial sealing applications under demanding operating conditions.
1. Extreme Temperature Resistance
Capable of stable, long-term operation within a temperature range of -200°C to +850°C. Certain models can withstand temperatures up to 3000°C in non-oxidizing environments, making them ideal for applications involving high-temperature furnaces, thermal cycling systems, and similar scenarios.
2. High Strength and Resilience
Reinforced with metal layers, such as stainless steel (e.g., SS304, SS316) or tinplate to significantly enhance compressive strength and impact resistance. The compression recovery rate reaches 30%-55%, effectively compensating for flange deformation.
3. Exceptional Chemical Stability
Exhibits excellent resistance to acids, alkalis, steam, oils, and a wide range of corrosive media (with the exception of strong oxidizing acids). Suitable for use across a pH range of 0-14, making it ideal for highly corrosive environments found in the chemical and pharmaceutical industries.
4. Low Installation Preload
Requires significantly less seating stress (clamping force) compared to traditional metal gaskets. It places minimal demands on flange face flatness and does not adhere to the flange surface upon removal, thereby facilitating easier maintenance.
5. Self-Lubricating and Age-Resistant
The inherent lamellar structure of graphite provides self-lubricating properties and a low coefficient of friction. It resists embrittlement and aging during thermal cycling, ensuring a long service life.
6. Eco-Friendly and Safe Materials
Features a carbon content of ≥99.5%, sulfur content of ≤200 ppm, and chlorine content of ≤30 ppm. Compliant with clean process requirements, it does not contaminate the process media, making it suitable for use in the food and pharmaceutical industries.
7. Customizable Fabrication
Supports various fabrication methods, including punching and cutting, to produce circular or complex geometric shapes (e.g., gaskets for liquid level gauges or cylinder heads). Optional edging processes (inner or outer edging) are available to further enhance pressure resistance and ease of installation.
1. Petrochemical Industry
Used for flange sealing in equipment such as pipelines, valves, pumps, heat exchangers, and reactors within refining, ethylene production, and fertilizer plants, effectively resisting corrosion from acids, alkalis, salts, and organic solvents.
2. Power and Energy Industry
Widely utilized for sealing high-temperature and high-pressure components in power plants-including boiler systems, steam turbines, condensers, and air compressors-as well as in specific areas such as generator end covers and exhaust pipe connections.
3. Metallurgy and Coal Mining Industries
Employed in blast furnaces, coke ovens, and gas purification systems to seal high-temperature flue gases and corrosive gases, demonstrating excellent thermal stability and resistance to thermal shock.
4. Pharmaceutical and Food Industries
Due to its non-toxic nature and its inability to contaminate the process medium, it is suitable for sealing connections in pharmaceutical reactors and food processing equipment where strict hygiene and cleanliness standards are required.
5. Refrigeration and Air Conditioning Systems
In refrigeration units, chillers, and ammonia-based systems, graphite-reinforced sheets can withstand exposure to refrigerants such as liquid ammonia and Freon, while remaining resistant to aging and embrittlement.
6. Automotive Manufacturing Sector
Commonly used for components such as cylinder head gaskets and exhaust manifold gaskets in diesel engines, capable of withstanding frequent temperature fluctuations and vibration loads.
7. Water Treatment and Environmental Engineering
Applied in the pump and valve sealing systems of seawater desalination and wastewater treatment facilities, effectively resisting chloride ion corrosion and extending the service life of the equipment.
1. Adhesive-Free Lamination, Robust Mechanical Interlocking
The process utilizes a punched-tooth metal core plate (feauring a perforated structure) pressed directly against expanded graphite. Under high pressure, the graphite embeds itself into the metal's pores, creating an "anchoring effect" that achieves a binder-free physical bond. This method prevents performance degradation caused by the aging and carbonization of adhesives at high temperatures, thereby significantly enhancing long-term operational reliability.
Certain advanced processes have successfully implemented the recycling and reuse of graphite waste, enabling the production of high-strength, eco-friendly graphite plates through composite fabrication with ceramic-phase reinforcements, thereby fostering the development of green manufacturing.
