In today’s world, electronic devices are more powerful, compact, and energy-efficient than ever before. From smartphones and laptops to electric vehicles (EVs) and advanced medical equipment, the demand for high-performance electronics continues to rise. However, with this increased performance comes an inevitable challenge: heat. As electronics become more complex, they generate more heat, which can negatively affect their performance, reliability, and lifespan. This is where graphite foil plays a crucial role.
Graphite foil, a thin sheet of flexible graphite, has emerged as one of the most effective materials for managing heat in electronic devices. Its excellent thermal conductivity, flexibility, and lightweight properties make it a game-changer in thermal management. In this article, we will explore the role of graphite foil in heat management for electronics, its advantages, applications, and why it’s becoming an indispensable material in modern electronics.

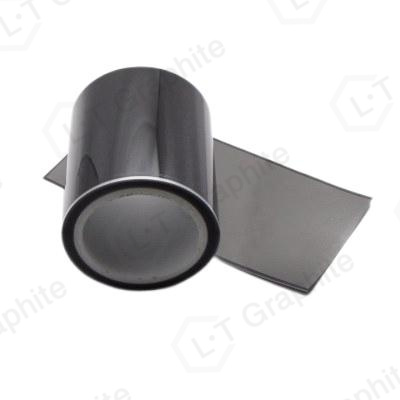

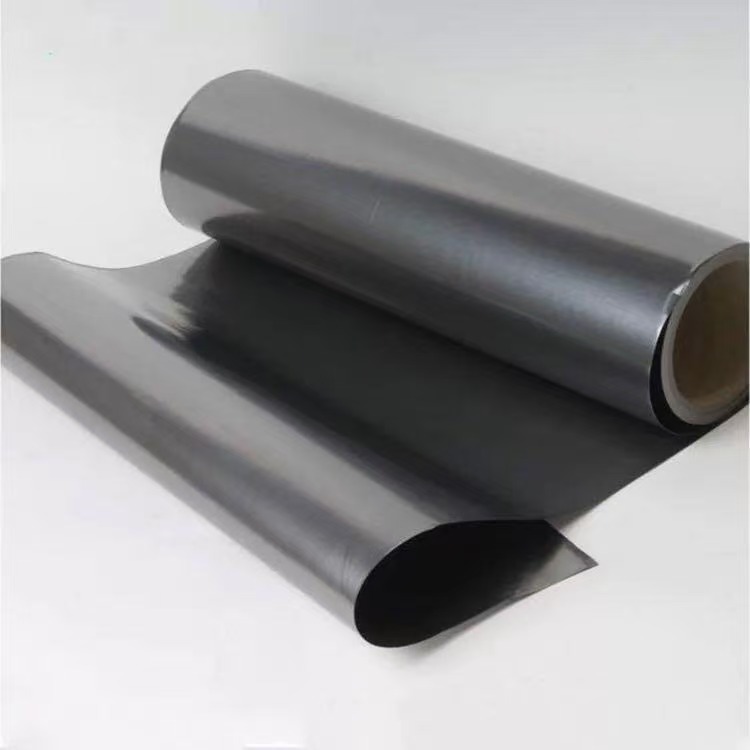

Graphite foil is a thin, flexible sheet made from high-purity expanded graphite, a form of carbon. It is produced by expanding natural graphite through a process that involves exposing it to high heat and chemicals, making it porous and flexible. The expanded graphite is then compressed to form a thin, smooth foil.
This material boasts several key properties that make it particularly suited for heat management applications in electronics:
High Thermal Conductivity: Graphite has excellent thermal conductivity, meaning it can efficiently transfer heat away from sensitive components.
Flexibility: Unlike traditional metal heat sinks, graphite foil can be molded to fit a variety of shapes and sizes, making it ideal for compact and intricate electronic devices.
Lightweight: Graphite foil is significantly lighter than metals, which is especially important in industries such as mobile electronics and electric vehicles, where weight reduction is crucial.
Chemical Inertness: Graphite foil is chemically stable and non-reactive, which makes it ideal for use in a variety of environments, including those with high temperatures and challenging chemical conditions.
Heat management is a critical issue in the design and operation of electronic devices. As electronic components become smaller and more powerful, they generate heat, which must be dissipated to prevent damage. Without effective heat management, overheating can lead to:
Reduced Performance: Excessive heat can cause electronic components to function inefficiently or even shut down entirely.
Shortened Lifespan: Continuous exposure to high temperatures can degrade materials and reduce the lifespan of electronic components.
Potential Failure: In extreme cases, overheating can lead to catastrophic failures, such as battery explosions or circuit board damage.
In the past, heat management in electronics was primarily achieved through passive solutions such as heat sinks, fans, and thermal pads. However, as devices have become more compact and energy-dense, these traditional methods have proven to be insufficient. More advanced solutions, such as graphite foil, are now being employed to meet the growing demands for thermal management in electronics.
Graphite foil offers several key advantages over other thermal management materials, such as metals and polymer-based materials. Let’s take a closer look at these benefits:
One of the standout features of graphite foil is its exceptional thermal conductivity. Graphite is one of the best natural conductors of heat, especially when compared to materials like aluminum and copper. In fact, its thermal conductivity is often higher in the plane of the graphite layers, making it ideal for spreading heat evenly across the surface.
In electronics, this means that graphite foil can quickly draw heat away from hot spots (such as processors or power modules) and transfer it to other areas or external cooling systems. This rapid heat dissipation ensures that the internal temperature of the device remains within safe operating limits, preventing overheating and performance degradation.
Graphite foil is significantly lighter than metal-based solutions, such as aluminum or copper heat sinks. This makes it an attractive option for industries where weight is a critical factor, such as in mobile electronics, electric vehicles, and aerospace applications. Reducing the weight of a device can improve energy efficiency, extend battery life, and enhance overall performance.
Additionally, graphite foil is flexible, which allows it to conform to the shape of the device, making it versatile for use in a wide range of applications. Unlike rigid heat sinks, which may not fit well in compact or irregularly shaped enclosures, graphite foil can be molded to fit into tight spaces, ensuring that heat is managed effectively in even the smallest and most intricate devices.
Graphite foil is capable of withstanding extremely high temperatures without losing its properties. It can operate at temperatures up to 3000°C in inert environments, making it ideal for devices that generate significant heat or are exposed to high temperatures during operation.
In electronics, especially in power modules, processors, and other high-performance components, high temperatures are common. Graphite foil’s ability to maintain its integrity and performance under high heat makes it a durable and reliable material for thermal management applications.
Unlike metals, which can corrode or degrade in the presence of moisture, graphite foil is chemically inert and does not react with most substances, including acids and bases. This makes it ideal for use in harsh environments where other materials might fail or degrade over time. Whether it's used in battery systems, industrial electronics, or medical devices, graphite foil will maintain its properties and perform reliably without risk of corrosion.
Given its outstanding thermal properties, graphite foil has found applications in a variety of electronic devices and systems. Here are some of the key areas where graphite foil is being used to manage heat:
Power electronics, such as inverters, converters, and motor drives, generate significant amounts of heat. Graphite foil is commonly used in these applications to help dissipate the heat generated by power transistors and other components. By spreading the heat evenly across the device, graphite foil ensures that components do not overheat, preventing damage and improving performance.
In lithium-ion batteries, heat buildup can reduce efficiency, shorten battery life, and even lead to dangerous thermal runaway. Graphite foil is often used in thermal management systems for batteries to distribute heat evenly and keep the battery temperature within safe limits. It can be used in both electric vehicles (EVs) and consumer electronics to improve the longevity and safety of battery packs.
LED lights are known for their efficiency, but they still generate heat, especially in high-power applications. Graphite foil is used to manage the heat in LED fixtures and systems, ensuring that the lights operate efficiently and last longer without overheating. It can be used as a thermal interface material between the LED chip and the heat sink.
In mobile electronics, such as smartphones and laptops, space is limited, and heat needs to be efficiently dissipated to maintain performance. Graphite foil is often integrated into these devices as a thermal spreader or thermal pad to ensure that heat is evenly distributed, preventing hotspots and overheating.
In EVs, efficient heat management is crucial, especially in power electronics and battery systems. Graphite foil is used in EVs to improve the thermal performance of battery packs, inverters, and other electronic components. This ensures that the vehicle remains energy-efficient, safe, and reliable, even during high-performance operation.
Graphite foil is revolutionizing heat management in the electronics industry. Its outstanding thermal conductivity, flexibility, and lightweight properties make it an ideal solution for dissipating heat in a wide range of electronic applications. From smartphones and laptops to electric vehicles and power electronics, graphite foil helps keep devices cool, improving performance, reliability, and lifespan.
As electronics continue to evolve and become more powerful, the need for advanced heat management solutions like graphite foil will only grow. With its versatility and performance, graphite foil is poised to remain a crucial material in the thermal management of next-generation electronics.
