Graphite electrodes are fundamental components in high-temperature industrial processes, especially in electric arc furnaces used for steelmaking. Their unique ability to conduct high currents and endure extreme thermal conditions makes them irreplaceable in various sectors. But what exactly are graphite electrodes made of? This article takes a deep dive into the materials, processes, and properties that define graphite electrodes.
The foundation of every graphite electrode is petroleum coke—an essential carbon-rich raw material. This byproduct of oil refining has a granular texture and high fixed carbon content, typically exceeding 98%. Its hardness and electrical conductivity make it the perfect base material for electrode production.
Petroleum coke used in graphite electrode manufacturing is not your average carbon residue. It undergoes a specific refining process to achieve needle-like structures—hence the name needle coke, a premium variant used predominantly for ultra-high-power (UHP) electrodes. Needle coke has a unique crystalline structure that provides anisotropic properties, allowing electrons to flow more efficiently along specific axes.
The raw coke is milled into a fine powder, forming the base for subsequent mixing with binders. The quality and purity of the coke directly affect the electrode's final conductivity, oxidation resistance, and mechanical integrity. A higher-quality coke results in higher-density electrodes, which are preferred for critical industrial applications.
Coal tar pitch serves as the primary binder in graphite electrode production. It is a black, viscous liquid derived from coal tar, and it plays an essential role in fusing the petroleum coke particles together. Its adhesive characteristics and high carbon content allow it to form a stable matrix when heated.
The binder not only holds the coke particles together during the forming process but also contributes significantly to the carbon yield during baking. A higher carbon yield means less shrinkage, improved structural strength, and better performance under thermal and electrical stress.
The coal tar pitch is heated and blended with the powdered petroleum coke, forming a paste. This mixture must be homogeneous, with a carefully controlled ratio to ensure optimal baking behavior and minimal internal defects. The proportion of binder typically ranges between 15–30% of the total mix, depending on the desired electrode grade and final application.
Once the raw materials—petroleum coke and coal tar pitch—are mixed into a consistent paste, the next step involves forming the electrode body. The material is either extruded through dies or molded into cylindrical shapes under high pressure.
For most cylindrical electrodes, extrusion is the preferred method. The carbon paste is forced through a shaped die under high pressure, producing a uniform green body with consistent dimensions and density. This process minimizes voids and ensures directional alignment of the needle coke particles, which enhances electrical conductivity.
For certain specialized applications, isostatic or vibrational molding may be used instead. These techniques are typically applied to electrodes with specific size requirements or non-standard geometries. The key is to maintain uniformity in density and microstructure, critical factors in ensuring long-term performance in high-temperature environments.
After forming, the “green” electrodes are left to dry before undergoing the next critical stage—baking.
The formed electrodes undergo two vital thermal treatments: baking and graphitization. These processes permanently alter the material's structure and properties, transforming a soft, carbon-rich mass into a hard, crystalline graphite conductor.
The green electrodes are baked in a furnace at temperatures between 800°C and 1200°C. This step removes volatile substances and causes the coal tar pitch to carbonize, binding the coke particles into a rigid, porous carbon body. The baking process also significantly reduces mechanical stress and improves structural integrity.
The resulting product is known as a “carbon electrode,” which still lacks the high conductivity and thermal resistance required in industrial applications.
Graphitization is the final and most energy-intensive stage. The baked electrodes are heated to 2800°C–3200°C in an electric furnace. At this temperature, the carbon atoms rearrange into a hexagonal crystalline graphite structure. This transformation drastically enhances the material’s electrical conductivity, oxidation resistance, and thermal shock resistance.
The graphitization process is also where the electrodes derive their final physical and chemical properties. Parameters such as resistivity, bulk density, and flexural strength are all optimized during this stage.

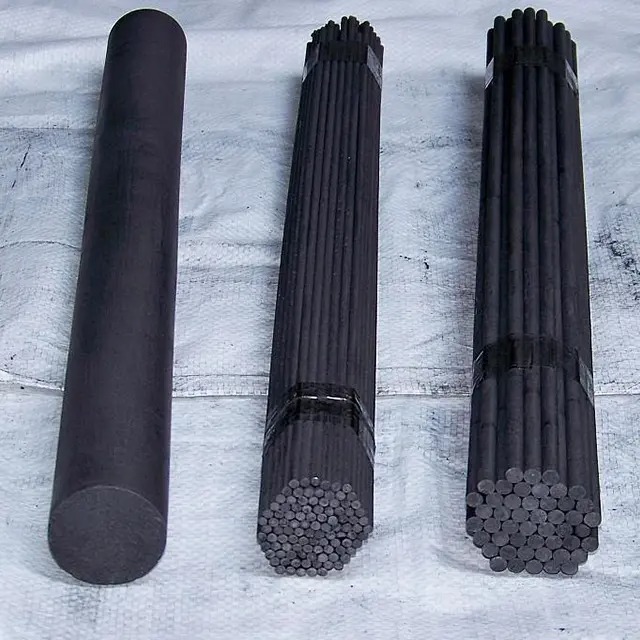

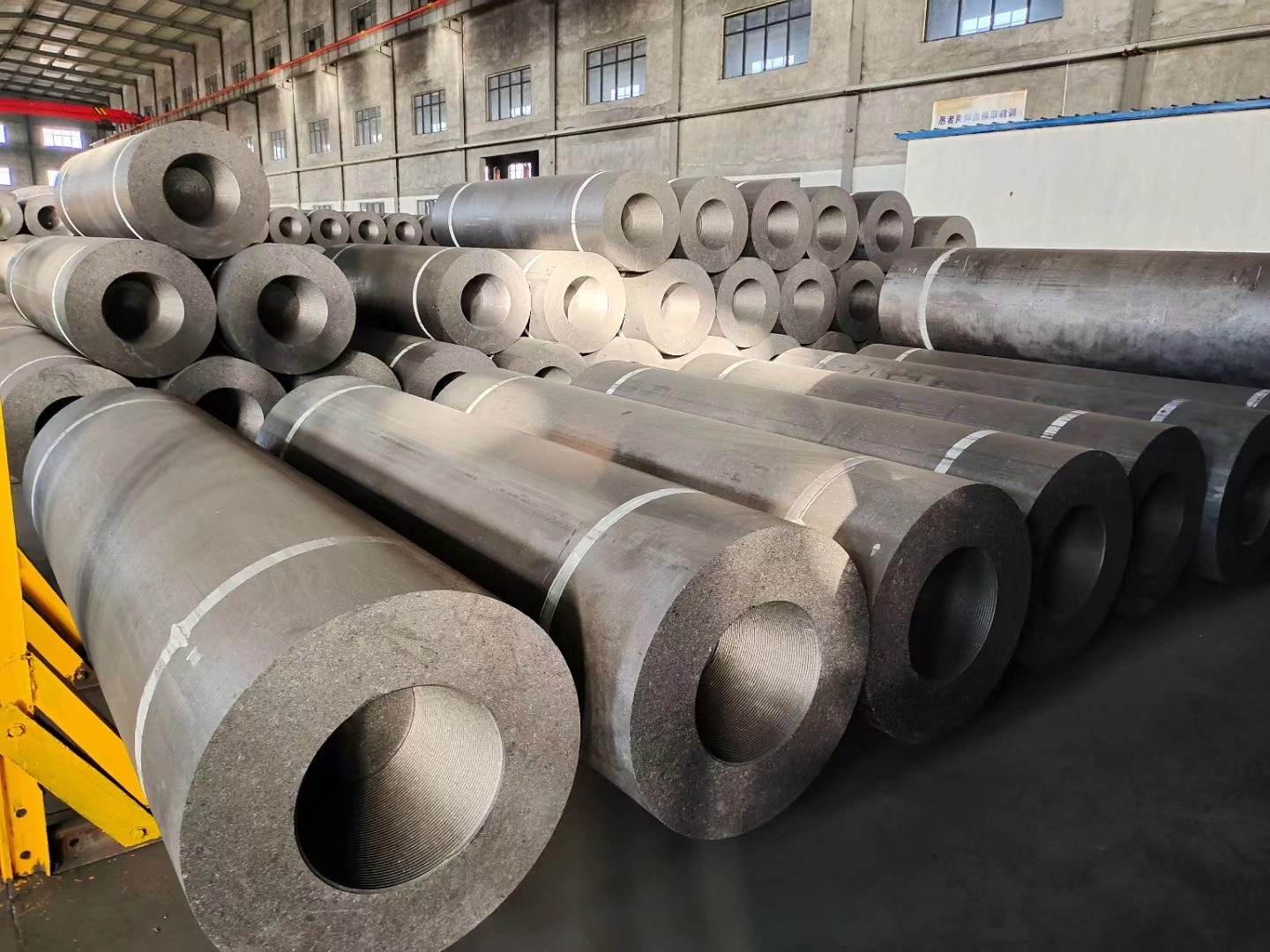

Once graphitized, the electrodes are still not ready for deployment. Their outer surface may be uneven, and the ends must be precisely shaped for connecting with other electrodes. This is where machining comes in.
Machining involves cutting, milling, and drilling to achieve the desired dimensions and surface finish. Threads are added to both ends to accommodate nipples, which join multiple electrodes together inside a furnace.
After machining, every electrode undergoes stringent quality control checks. Parameters like:
Bulk density
Electrical resistivity
Thermal expansion
Flexural strength
are carefully measured. Non-destructive tests, such as ultrasonic or X-ray inspections, may also be performed to detect internal flaws.
Only electrodes that pass all criteria are approved for shipment. Quality assurance at this stage is critical, as any internal defect could lead to catastrophic failure during furnace operation.
| Component | Source | Function | Contribution to Properties |
|---|---|---|---|
| Petroleum Coke | Oil Refining | Base material | High carbon content, conductivity |
| Needle Coke | Premium coke type | For UHP electrodes | Superior strength, low resistivity |
| Coal Tar Pitch | Coal tar distillation | Binder | Adhesion, high carbon yield |
| Green Body | Mixed material | Pre-baked form | Shape retention, initial structure |
| Baked Electrode | After baking | Intermediate stage | Porosity control, mechanical strength |
| Graphitized Electrode | High-temp furnace | Final product | Maximum conductivity and heat resistance |
Needle coke offers a highly oriented, anisotropic crystal structure, which provides superior electrical conductivity and thermal stability—critical for UHP electric arc furnaces.
Yes, scrap graphite can be partially used as filler, but it must be properly treated and mixed to ensure the mechanical integrity of the final product. However, the quality might not match virgin materials.
While graphite electrodes are essential for steel recycling, their production involves high energy consumption. However, innovations in sustainable coke sources and low-emission graphitization are underway to reduce their environmental impact.
Graphite electrodes are the unsung heroes of modern metallurgy. Behind their simple appearance lies a complex web of material science, thermal engineering, and precision manufacturing. From petroleum coke and coal tar pitch to high-temperature furnaces and machining, each step contributes to the electrode’s performance in demanding environments. Understanding what graphite electrodes are made of helps engineers, buyers, and operators make informed decisions about their use and maintenance.
